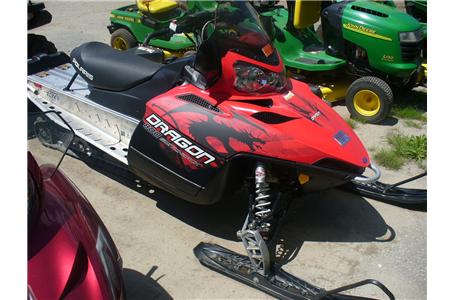

FACTORY DEMO - CLEAN - 2275 Mi - FULL WARRANTY

Lightweight Front End: A lighter, narrower front end features a link-type sway bar, lightweight spindles and a new bumper system with updated styling designed to carve through deep snow for improved boondocking.


Walker Evans Shocks: For 2010, the 800 Dragon Switchback features Walker Evans™ compression-adjustable remote-reservoir shocks on the front and rear suspension, delivering superior performance on and off the trail.


Sculpted Seat and Tank: Being able to adjust your position is critical to dominating extreme terrain. A lightweight freestyle seat allows for both aggressive cornering and easy stand-up riding.


136 Inch Coupled: The 136 in. skid is the ideal length for superior crossover performance. It bridging the bumps for outstanding on-trail comfort, and delivers terrain dominating control.


1.25 Inch Ripsaw Track: A 136 in. track bridges the bumps and a Ripsaw track pattern with 1.25 in. lugs Delivers the utmost in on- and off-trail performance.


Liberty 800 CFI Engine: Pumping out exceptional torque and top-end, this mono-block twin is the new standard in on-trail and off-trail muscle. It features Cleanfire injection for crisp acceleration and awesome mid-range power.

Dimensions
•Estimated Dry Weight (lbs./kg.): 506 / 229.5
•Overall Length (in./cm.): 120 / 308.4
•Overall Width (in./cm.): 48 / 121.9
•Overall Height (in./cm.): 48.5 / 123.2
•Ski Center Distance (in./cm.): 42.5 / 108
•Fuel Capacity (gallons/liters): 11.5 / 43.5
Engine & Drivetrain
•Engine Type/Cooling: Liberty / Liquid
•Cylinders-Displacement (cc): 2, 795
•Bore x Stroke (mm): 85 x 70
•Ignition: Digital CDI w/ TPS, WTS, DET
•Exhaust: SC VES, Single
•Fuel System: Cleanfire Injection
•Disc Brake Type: Phantom, Hydraulic, LWT Disc
•Drive/Driven Clutch: P-85 / LWT TEAM
Suspension
•Front Suspension: IQ
•Front Travel (in./cm.): 10 / 25.4
•Front Shocks: Walker Evans™ Piggyback
•Ski Type: IQ
•Rear Suspension: IQ 136 Coupled
•Rear Travel (in./cm.): 13.9 / 35.3
•Front Track Shock: Walker Evans™ IFP
•Rear Track Shock: Walker Evans™ Comp. Adj.
•Track (W x L x H in.): 15 x 136 x 1.25 RipSaw
Features
•Steering: Fixed Post - 5.25" Riser
•Electric Start: Option / Accessory
•Reverse: PERC
•Speedometer: Analog / Digital MFD
•Tachometer: Analog / Digital MFD
•Fuel Gauge Type: Digital MFD
•Temp/Low Oil Light: Digital MFD
•12v-DC Outlet: Accessory
•Handlebar Hooks: Std. Adjustable
•Hand & Thumb Warmers: Std. Adjustable
•Heated Passenger Grips: N/A
•Mirrors: Accessory
•Seat Type: Lightweight Freestyle
•Rear Rack / Tow Hitch: Accessory
•Windshield: 12"Matte Black
•Color / Graphics: Matte Red / Dragon
