Products » John Deere » LA135 SE Lawn Tractor
Model Quick Search

$2,129.00

2010 John Deere LA135 SE Lawn Tractor
Request a Quote Financing Calculator Request a Brochure Financing Form

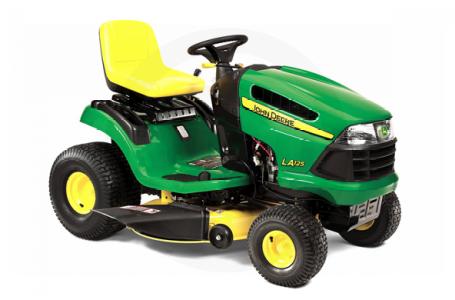

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • A 22-horsepower Briggs & Stratton V-twin engine has plenty of power and torque to handle tough mulching, mowing, and bagging conditions.
  • V-twin cylinder design for greater torque, lower vibration, and improved sound quality
  • Electronic ignition for fast starts
  • Cast-iron sleeves for longer engine life
  • Overhead valves for excellent power and fuel economy
  • Full-pressure lubrication and oil filter keep oil cleaner for long engine life and extends time between oil changes; full-pressure lubrication is also more effective when operating the tractor on an incline
  • No-tools oil drain valve provides easy access for oil changes.
  • Frame made of full-length welded steel for reliability
  • Full-length robotically welded frame design has high-strength steel rails for added strength and long life
  • One-piece fender deck is bolted to the frame
  • The CargO Mount system is a combination of front and rear mounting points that provide convenient and easy installation of the sun canopy, rear bagger, and other attachments.
  • Cast-iron front axle will not bend The front axle is constructed of solid cast iron that will not bend.
  • Automotive-like steering system with sector and pinion steering gears with dual drag links provides a very strong, low-effort, and tight-turning system
  • Grease fittings allow regular lubrication to help maintain easy steering and minimize wear
  • Large, 3/4-in. diameter wheel spindles provide excellent durability
  • Hydro/automatic drive gives an infinite choice of ground speeds A Kanzaki Tuff Torq™ hydro/automatic transmission gives an infinite choice of speeds and makes changing direction of travel easy.
  • Automotive-type accelerator provides infinite speed selection for the ultimate in operator comfort and convenience
  • Pedals have a different shape and motion for easy identification and increased safety
  • Hood will not dent or rust and includes quality headlights for good visibility The hood is made of injection-molded JD Loy UV-resistant polymer.
  • Tough, durable, and will not dent or rust
  • Color is molded-in for long-lasting good looks
  • UV-resistant JD Loy material resists fading
  • Openings on the side of the hood let in plenty of cooling air while keeping the sound level low
  • Two headlights provide good lighting for nighttime operation
  • Operator station designed for comfortable operation Ignition switch is on the dash for starting ease. Wide footrest areas with non-slip, anti-vibration rubber footpads are provided for operator comfort and safety.
  • High-back seat gives extra operator comfort. It is especially helpful when operating the tractor for extended periods of time.
  • Seat can be easily adjusted forward or rearward while in the seat, with seat travel of 5-1/2-in. and 10 different positions
  • Seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank
  • Translucent fuel tank with sight gauge for ease of checking fuel level
  • The fuel tank provides visibility to the amount of fuel in the tank.
  • Particularly helpful in preventing spills when filling the fuel tank
  • Gives operator a simple way to view how much fuel is left in the tank
  • Fuel Tank Capacity (except California tractors): 4 gallon
RIO (Reverse Implement Option)
  • Mowing while backing up is strongly discouraged.
  • An operator who deems it necessary and chooses to keep the mower (or other implement) engaged while backing up should first bring the tractor to a stop and look behind the tractor to be sure there are no bystanders. Then actuate (push in) the RIO button. The RIO button must be held down in the reverse implement position as the shift lever is moved into reverse (reverse foot pedal is depressed on automatic drive models).
  • The operator may then release the button and the mower will continue to operate while they are backing up and also when they resume forward operation. The next time the operator chooses to keep the mower engaged while backing up, they must repeat this procedure. If the mower (PTO) is engaged and the operator shifts into reverse or depresses the reverse pedal prior to pressing the RIO button, ignition to the engine will be shut off. The engine will stop unless the operator either pushes on the RIO switch or shifts out of reverse.
  • If the engine does stop, the operator must return the mower engagement (PTO) switch or lever to the ''off'' position, depress the brake pedal, and then turn the ignition switch to restart the engine.
Warranty
  • 2 year
Engine
  • Power: 22 hp (16.4 kW)
  • Displacement: 40 cu. in. (656 cc)
  • Manufacturer: Briggs & Stratton
  • Cylinders: V-twin
  • Type: Overhead valve
  • Oil Drain: No tools
  • Charging System: 9 amp regulated
  • Choke/Speed Control: One lever
  • Fuel Tank Location: Rear
  • Fuel Tank Capacity: 4 gal. (2.25 gal. for California model)
  • Fuel Sight Gauge, front
Transmission
  • Control: Two-pedal foot control
  • Cruise Control
  • Forward Speed: 0-5.5 mph
  • Reverse Speed: 0-3.2 mph
Chassis
  • Frame: Full-length welded steel frame
  • Primer/Paint: E-coat/powder
  • Front Tires: 15x6-6
  • Rear Tires: 20x10-8
  • Front Axle: Cast iron
  • Hood Material: JD Loy
  • Floor Mats
  • CargO Mount System
  • Storage Pocket
  • Hourmeter
  • Service Reminder
  • Service Interval Decal
  • Tool Tray
  • Cupholder
Steering
  • Turning Radius: 18 in.
  • Uncut Circle Radius: 25 in. (42 in. mower)
Seat
  • Seat Back Height: 15 in.
  • Fore-aft Adjustment: 5 1/2 in. while seated
Lift system
  • Mower Cut Height: 1-4 in., 13 positions
  • Cut Height Increments: 0.25 in.
Mower
  • Mower Cutting Width: 42 in.
  • Mower Deck Material: .105 in. (12 ga.)
  • Mower Wash Port
  • Easy-Level Deck
  • Mower Drive System: Manual PTO
  • Mulch Cover: Optional
Mower Attachability
  • Front Draft Arms: Spring pin
  • Rear Draft Arms: Spring pins
  • Meets ANSI Standard
  • Backup Protection: RIO
  • Safety Video
Dimensions
  • Wheelbase: 48.9-in. (124.2 cm)
  • Overall Length: 74.1-in. (188.2 cm)
  • Overall Width (includ. discharge chute): 52-in. (132 cm)
  • Height: 45.7-in. (116 cm)
Optional Attachments
  • Mower: 42 in. Edge (standard)
  • Rear Bagger: 6.5 bu. 2-bag
  • Mulching System: High performance plug
  • Snow Blade: 46 in.
  • Snow Blower: 44 in. two-stage
  • Front Bumper: Two-bar styled front bumper
  • Sun Canopy
  • Bucket Holder
  • Tow-Behind Tools: 14
  • Mounted Electric Spreader: 100 lb, 2 cu ft
California Tractors
  • 2.25 gallon (8.5 L) fuel capacity
  • Tractor has a unique fuel tank that has been certified by CARB to not release fuel vapors into the atmosphere
  • Tractor has a unique fuel cap that is tethered to the tank so that it will not be lost and the tractor run with an open fuel tank; the cap clicks when it is fully installed so the operator knows that the tank is sealed
  • Instead of a fuel tank vent, a carbon canister, located under the rear fender deck, collects and absorbs fuel vapors and routes them to the engine, when it is running, to be burned
  • The tractor has a CARB-certified engine that produces less air pollution
NOTES:

Engine horsepower is provided by the engine manufacturer for comparison purposes. Actual operating horsepower will be less.


Specifications

Engine
Engine Manufacturer Briggs & Stratton
Horse Power 22 hp (16.4 kW)
Displacement 40 cu. in. (656 cc)
General
Wheel Size Front Tires: 15x6-6; Rear Tires: 20x10-8
Fuel Capacity 4 gal. (2.25 gal. for California model)
Deck
Deck Size 42 in.
Discharge Type Side; Optional: Mulcher; Bagger

Compare Models

 Print








Year 2010
Manufacturer John Deere
Model LA135 SE Lawn Tractor
Style Riding
Deck
Deck Size 42 in.
Discharge Type Side; Optional: Mulcher; Bagger
Engine
Engine Manufacturer Briggs & Stratton
Horse Power 22 hp (16.4 kW)
Engine Type
Displacement 40 cu. in. (656 cc)
General
Transmission
Wheel Size Front Tires: 15x6-6; Rear Tires: 20x10-8
Fuel Capacity 4 gal. (2.25 gal. for California model)
