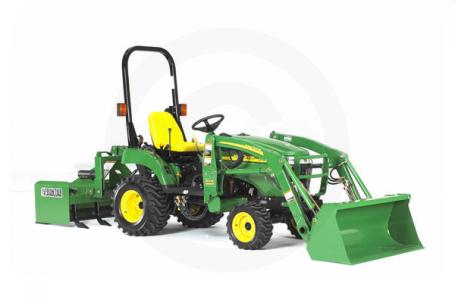

2010 John Deere 2305 4WD Compact Tractor
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Power
    • 3-Cylinder Yanmar diesel engine
    • 24 horsepower
    Performance
    • Differential lock increases traction and pulling power
    • Independent mid and rear PTOs
    • Hydro transmission provides infinite speed selection without clutching or shifting required for direction changes
    Comfort
    • Power steering
    • Patented, ergonomic Twin Touch™ two-pedal foot control
    • Optional cruise control
    • Engine isolators reduce noise and vibration
    • High-backed contoured seat is suspended for added operator comfort
    Reliability
    • Auto-bleed fuel system - if tractor runs dry, just refuel and restart
    • Wet-disk brakes
    Safety
    • Roll-Gard™ ROPS and seat belt ensure operator safety
    • Operator presence system
    Versatility
    • Limited Category 1 3-point hitch
    • Optional iMatch™ quick hitch
    • Optional Quick-Park™ Loader - attaches and detaches in minutes
    Engine
    • Manufacturer: Yanmar 3TNV76
    • Engine - gross: 24.1 hp (17.7 kW)
    • PTO HP - Hydrostatic transmission: 18 hp (13.4 kW)
    • Rated engine speed: 3000 rpm
    • Type: Diesel
    • Operating range: 1170-3170
    • Aspiration: Natural
    • Cylinders/Displacement: 3 / 68 cu. in. (1.115 l)
    • Cylinder Liners: Cast-In-Block
    • Bore and Stroke: 76x82 mm (2.99"x3.23")
    • Compression Ratio: 23.4:1
    • Lubrication: Pressurized
    • Cooling System: Water pump
    • Air Cleaner: Dry type with safety element
    • Engine Shutoff: Key switch
    • Engine Torque @ rated speed: 41.7 ft.lbs.(56.5 N/m)
    • Fuel Tank Cap: 5.5 gal. (21.0 l)
    Electrical
    • Type: 12V
    • Battery Size (CCA): 500
    • Alternator: 12 volt, 20 amp
    • Starter Size: 1.6 hp (1.2 kW)
    Fuel System
    • Type: Diesel
    • U.S. gal./hr (L/hr) @ 100% load: 1.6 (6.1)
    Transmission
    • Std. Transmission; Forward/Reverse: Hydrostatic - 2 range
    • Left-Hand Reverser: No
    • Direction Reverser; Forward/Reverse: No; Twin Touch Pedals
    • Final Drive: Spur gear
    • Brakes: Wet disk
    • Steering: Power
    • Drawbar Tongue Weight Capacity: 562 lbs. (255 kg)
    • Axle Capacity - Front: 1654 lbs. (750 kg)
    • Axle Capacity - Rear: 1477 lbs. (670 kg)
    • Creeper: No
    Hydraulics
    • Type: Open Center
    • Pump Rated Output: 5.2 gpm (19.7 l/min)
    • Steering: 2.3 gpm (8.9 l/min.)
    • Implement: 2.9 gpm (10.8 l/min.)
    • Pump Type: Gear
    • Maximum Operating Pressure: 1987 psi
    • Draft Control Type: Select Control
    • Remote Control Valves Available: 2
    3-Point Hitch
    • Type: Limited Cat. 1
    • Lift Capacity (24-in. behind link arms): 681 lbs. (309 kg)
    Power Take-Off (PTO)
    • Standard: Rear @ 540; Mid @ 2100
    • Control: Independent
    • Brake (for Mid and Rear PTO): Wet disk
    Fluid Capacities
    • Fuel Tank: 5.5 gal. (21.0 l)
    • Cooling system (includes coolant bottle): 3.4 qt (3.2 l)
    • Crankcase with filter: 3.4 qt (3.2 l)
    • Transmission and Hydraulic System hydrostatic: 3.4 gal. (13.0 l)
    • Front Axle Gearcase (MFWD axle): .625 gal. (2.5 l)
    Final Drive
    • Type: Spur Gear
    Operator Station
    • Rollover Protective Structure: OSHA, SAE, ASAE
    • Rigid - Foldable - Telescopic: Rigid
    • Platform - Flat/Straddle: Semi flat
    • Gear Shift Location - Console/Floor: Right Hand Side
    MFWD Dimensions
    • Wheelbase: 57.1 in. (1450 mm)
    • Front Tread Range: 35.6 in. (905 mm)
    • Front Axle Clearance: 7.7 in. (195 mm)
    • Turning Radius w/o Brakes: 7.4 ft. (2.25 m)
    • Approx. Ship Wgt: 1450 lbs (658 kg)
    Standard Tires
    • MFWD Front: 18X8.5-10 R4
    • MFWD Rear: 26X12-12 R4
    Miscellaneous
    • Underhood Muffler: Yes
    • Joystick SCV Control: Yes
    • Inboard Planetary: No
    • Axle Type: Flanged
    • Brakes - Type and Control: Wet Disk

    Specifications

    Engine
    Engine Manufacturer Yanmar 3TNV76
    Engine Type 3-Cylinder, Liquid Cooled, Diesel
    Horsepower 24.1 hp (17.7 kW)
    PTO HP 18 hp (13.4 kW)
    Rated RPM 3000 rpm
    Bore and Stroke 76 x 82 mm (2.99" x 3.23")
    Specifications
    Wheelbase 57.1 in. (1450 mm)
    Weight 1450 lbs. (658 kg) Shipping Weight
    Ground Clearance 7.7 in. (195 mm)
    Tire Size Front: 18 x 8.5 - 10 R4, Rear: 26 x 12 - 12 R4
    General
    Fuel System Direct Injection
    Fuel Capacity 5.5 gal. (21 l)
    Transmission Hydrostatic - 2 range
    Brakes Wet Disk
    Hydraulics Open Center, 1987 Max psi
    Drive Type Spur Gear

    Compare Models

    		 Print








    Year 2010
    Manufacturer John Deere
    Model 2305 4WD Compact Tractor
    Style Utility
    Engine
    Engine Manufacturer Yanmar 3TNV76
    Engine Type 3-Cylinder, Liquid Cooled, Diesel
    Horsepower 24.1 hp (17.7 kW)
    PTO HP 18 hp (13.4 kW)
    Rated RPM 3000 rpm
    Bore and Stroke 76 x 82 mm (2.99" x 3.23")
    General
    Fuel System Direct Injection
    Fuel Capacity 5.5 gal. (21 l)
    Transmission Hydrostatic - 2 range
    Brakes Wet Disk
    Hydraulics Open Center, 1987 Max psi
    Drive Type Spur Gear
    Specifications
    Wheelbase 57.1 in. (1450 mm)
    Height
    Width
    Weight 1450 lbs. (658 kg) Shipping Weight
    Ground Clearance 7.7 in. (195 mm)
    Tire Size Front: 18 x 8.5 - 10 R4, Rear: 26 x 12 - 12 R4
